Linear Algebra & Applications

2201NSC

Applications of the Singular Value Decomposition

Singular Value Decomposition (SVD)

Recall that any matrix $A \in \mathbb{R}^{m \times n}$ can be written as

$ A = U\Sigma V^{T} $

$ A = U\Sigma V^{T} $

$ A = U\Sigma V^{T} $

$ {\Large A =} \; \begin{pmatrix} | & | & & | \\ \u_1 & \u_2 & \dots & \u_m \\ | & | & & | \end{pmatrix} \left(\begin{array}{ccc|c} \sigma_1 & \cdots & 0 & \\ \vdots & \ddots & \vdots & \mathbf 0 \\ 0 & \cdots & \sigma_r & \\ \hline & \mathbf 0 & & \mathbf 0 \end{array} \right) \begin{pmatrix} \,-\; \v_1^T \;- \\ \,- \; \v_2^T \; - \\ \vdots \\ \,-\; \v_n^T \;- \end{pmatrix} $

$ {\Large A =} \; \begin{pmatrix} | & | & & | \\ \u_1 & \u_2 & \dots & \u_r \\ | & | & & | \end{pmatrix} \begin{pmatrix} \sigma_1 & & & \\ & \sigma_2 & & \\ & & \ddots & \\ & & & \sigma_r \end{pmatrix} \begin{pmatrix} \,-\; \v_1^T \;- \\ \,- \; \v_2^T \; - \\ \vdots \\ \,-\; \v_r^T \;- \end{pmatrix} $

$\ds =\sum_{i=1}^{r} \sigma_i \u_i \v_i^T$

where $U \in \mathbb{R}^{m \times m}$ and $V \in \mathbb{R}^{n \times n}$ are orthogonal matrices, and $\Sigma \in \mathbb{R}^{m \times n}$ contains singular values $\sigma_1 \ge \sigma_2 \ge \dots \ge \sigma_r > 0.$


The SVD as an Outer Product Expansion

Thus the SVD expresses $A$ as a sum of matrices:

$\ds A = U\Sigma V^{T} =\sum_{i=1}^{r} \sigma_i \u_i \v_i^T$

Here, the product $\u_i \v_i^T$ is a $m$-by-$n$ matrix:

$ \u_i \v_i^T $ $ = \begin{pmatrix} u_{1i} \\ u_{2i} \\ \vdots \\ u_{mi} \end{pmatrix} \begin{pmatrix} v_{1i} & v_{2i} & \dots & v_{ni} \end{pmatrix} $ $ = \begin{pmatrix} u_{1i}v_{1i} & u_{1i}v_{2i} & \dots & u_{1i}v_{ni} \\ u_{2i}v_{1i} & u_{2i}v_{2i} & \dots & u_{2i}v_{ni} \\ \vdots & \vdots & \ddots & \vdots \\ u_{mi}v_{1i} & u_{mi}v_{2i} & \dots & u_{mi}v_{ni} \end{pmatrix} $

The SVD decomposes $A$ into a linear combination of outer product matrices.



The SVD as an Outer Product Expansion

The SVD expresses $A$ as a sum of matrices:

$\ds A = U\Sigma V^{T} =\sum_{i=1}^{r} \sigma_i \u_i \v_i^T$

Here, $\u_i \v_i^T$ is the outer product of $\u_i$ and $\v_i$. This is a $m$-by-$n$ matrix:

$ \u_i \v_i^T $ $ = \begin{pmatrix} u_{1i} \\ u_{2i} \\ \vdots \\ u_{mi} \end{pmatrix} \begin{pmatrix} v_{1i} & v_{2i} & \dots & v_{ni} \end{pmatrix} $ $ = \begin{pmatrix} u_{1i}v_{1i} & u_{1i}v_{2i} & \dots & u_{1i}v_{ni} \\ u_{2i}v_{1i} & u_{2i}v_{2i} & \dots & u_{2i}v_{ni} \\ \vdots & \vdots & \ddots & \vdots \\ u_{mi}v_{1i} & u_{mi}v_{2i} & \dots & u_{mi}v_{ni} \end{pmatrix} $

  • Orthonormality of $U$ and $V$ implies $\|\u_i\| = \|\v_i\| = 1$.
  • This imposes a limit on the size of the elements of $\u_i \v_i^T$:
    • $|u_{ji}| \le 1$ and $|v_{ki}| \le 1$, so each element has size $\leq 1$; and
    • Sum of squared entries over each term satisfies $\ds\sum_{j,\,k} \left(u_{ji} v_{ki}\right)^2 = 1$.

The SVD as an Outer Product Expansion

Thus, the "size" of the terms in the SVD expansion

$\ds A = U\Sigma V^{T} =\sum_{i=1}^{r} \sigma_i \u_i \v_i^T$

decreases as we move from term to term in the expansion.

  • The singular values $\sigma_i$ act as weights for the rank-one terms $\sigma_i \u_i \v_i^T$.
  • Since $\sigma_1 \ge \sigma_2 \ge \cdots \ge \sigma_r > 0$, the terms become progressively less significant.
  • We can therefore approximate $A$ by keeping only the first few terms of the SVD expansion: $\ds A \approx \sum_{i=1}^{k} \sigma_i \u_i \v_i^T.$
  • This can provide substantial data compression: a $k$-term approximation requires $k(m+n+1)$ numbers instead of $mn$.

Approximating the 10-by-10 magic square

${\Large A=}\;\;\begin{pmatrix} 92&99&1&8&15&67&74&51&58&40\\ 98&80&7&14&16&73&55&57&64&41\\ 4&81&88&20&22&54&56&63&70&47\\ 85&87&19&21&3&60&62&69&71&28\\ 86&93&25&2&9&61&68&75&52&34\\ 17&24&76&83&90&42&49&26&33&65\\ 23&5&82&89&91&48&30&32&39&66\\ 79&6&13&95&97&29&31&38&45&72\\ 10&12&94&96&78&35&37&44&46&53\\ 11&18&100&77&84&36&43&50&27&59 \end{pmatrix} $

What is a magic square?

🤔

Every row, column and main diagonal has the same sum 505.

Let's investigate how we might approximate this matrix via its SVD.

🧐

Approximating the 10-by-10 magic square

The diagonal matrix $\Sigma$ in the SVD is:

(computed numerically 💻)

$\begin{pmatrix} 505&0&0&0&0&0&0&0&0&0\\ 0&254.8589&0&0&0&0&0&0&0&0\\ 0&0&122.9542&0&0&0&0&0&0&0\\ 0&0&0&36.8347&0&0&0&0&0&0\\ 0&0&0&0&30.5167&0&0&0&0&0\\ 0&0&0&0&0&23.3508&0&0&0&0\\ 0&0&0&0&0&0&20.5153&0&0&0\\ 0&0&0&0&0&0&0&2\text{e-}14&0&0\\ 0&0&0&0&0&0&0&0&9\text{e-}15&0\\ 0&0&0&0&0&0&0&0&0&6\text{e-}16\\ \end{pmatrix}$

$\begin{pmatrix} 505&0&0&0&0&0&0&0&0&0\\ 0&254.8589&0&0&0&0&0&0&0&0\\ 0&0&122.9542&0&0&0&0&0&0&0\\ 0&0&0&36.8347&0&0&0&0&0&0\\ 0&0&0&0&30.5167&0&0&0&0&0\\ 0&0&0&0&0&23.3508&0&0&0&0\\ 0&0&0&0&0&0&20.5153&0&0&0\\ 0&0&0&0&0&0&0&\color{red}{2\text{e-}14}&0&0\\ 0&0&0&0&0&0&0&0&\color{red}{9\text{e-}15}&0\\ 0&0&0&0&0&0&0&0&0&\color{red}{6\text{e-}16}\\ \end{pmatrix}$

The last three values are essentially zero, the tiny non-zero values arise from floating-point round-off error.


Approximating the 10-by-10 magic square

The diagonal matrix $\Sigma$ in the SVD is

$\left(\begin{array}{cccccccccc} 505&0&0&0&0&0&0&0&0&0\\ 0&254.8589&0&0&0&0&0&0&0&0\\ 0&0&122.9542&0&0&0&0&0&0&0\\ 0&0&0&36.8347&0&0&0&0&0&0\\ 0&0&0&0&30.5167&0&0&0&0&0\\ 0&0&0&0&0&23.3508&0&0&0&0\\ 0&0&0&0&0&0&20.5153&0&0&0\\ 0&0&0&0&0&0&0&0&0&0\\ 0&0&0&0&0&0&0&0&0&0\\ 0&0&0&0&0&0&0&0&0&0\\ \end{array}\right)$

This means that the full magic square has rank 7 😃

If we want to approximate the magic square, the closest approximation to the original would be the rank 6 approximation, where we include the first 6 terms out of the full 7 in the summation.


Approximating the 10-by-10 magic square

The diagonal matrix $\Sigma$ in the SVD is

$\left(\begin{array}{cccccccccc} 505&0&0&0&0&0&0&0&0&0\\ 0&254.8589&0&0&0&0&0&0&0&0\\ 0&0&122.9542&0&0&0&0&0&0&0\\ 0&0&0&36.8347&0&0&0&0&0&0\\ 0&0&0&0&30.5167&0&0&0&0&0\\ 0&0&0&0&0&23.3508&0&0&0&0\\ 0&0&0&0&0&0&20.5153&0&0&0\\ 0&0&0&0&0&0&0&0&0&0\\ 0&0&0&0&0&0&0&0&0&0\\ 0&0&0&0&0&0&0&0&0&0\\ \end{array}\right)$

Thus, for a rank-6 approximation we need to compute the following sum:

$ A_6 = U_6\Sigma_6 V_6^T $ $\ds = \sum_{i=1}^{6} \sigma_i \u_i\v_i^T$


Approximating the 10-by-10 magic square: rank-6

The diagonal matrix $\Sigma_6$ for the approximation is:

$\left(\begin{array}{cccccccccc} 505&0&0&0&0&0\\ 0&254.8589&0&0&0&0\\ 0&0&122.9542&0&0&0\\ 0&0&0&36.8347&0&0\\ 0&0&0&0&30.5167&0\\ 0&0&0&0&0&23.3508 \end{array}\right)$

$ A_6 = U_6\Sigma_6 V_6^T $ $\ds = \sum_{i=1}^{6} \sigma_i \u_i\v_i^T$


Approximating the 10-by-10 magic square: rank-6

The matrices $U$ and $V$ in the SVD are:

$ {\Huge U=}\;\; \left( \begin{array}{rrrrrrrrrr} -0.3162&-0.3921& 0.1171& 0.4893&-0.1445&-0.1839& 0.2518& 0.5566&-0.2338& 0.1028\\ -0.3162&-0.3442& 0.1773&-0.0238&-0.1595& 0.5724&-0.1463&-0.4259&-0.4146& 0.1473\\ -0.3162&-0.0604&-0.6447&-0.0794&-0.4320&-0.2556&-0.4716& 0.0000& 0.0000& 0.0000\\ -0.3162&-0.3454&-0.0042&-0.4769&-0.0270&-0.0846& 0.4128&-0.0769& 0.5020& 0.3421\\ -0.3162&-0.3654&-0.0663& 0.0292& 0.5937&-0.0349&-0.1804&-0.0537& 0.1463&-0.5922\\ -0.3162& 0.2989&-0.0068& 0.5504&-0.1404&-0.1506& 0.3006&-0.5566& 0.2338&-0.1028\\ -0.3162& 0.3468& 0.0535& 0.0372&-0.1554& 0.6057&-0.0976& 0.4259& 0.4146&-0.1473\\ -0.3162& 0.1906& 0.6923&-0.2003&-0.1098&-0.4156&-0.3994& 0.0000& 0.0000& 0.0000\\ -0.3162& 0.3456&-0.1281&-0.4158&-0.0229&-0.0513& 0.4616& 0.0769&-0.5020&-0.3421\\ -0.3162& 0.3256&-0.1901& 0.0902& 0.5978&-0.0017&-0.1316& 0.0537&-0.1463& 0.5922 \end{array} \right) $

$ {\Huge V=}\;\; \left( \begin{array}{rrrrrrrrrr} -0.3162&-0.3754& 0.5851&-0.1205& 0.3217& 0.2559& 0.0491&-0.2801&-0.3721&-0.1176\\ -0.3162&-0.4521&-0.2739& 0.2759&-0.1152&-0.3187& 0.0812& 0.4531&-0.4630& 0.0585\\ -0.3162& 0.3722&-0.6124&-0.0758& 0.2570& 0.2860& 0.0459&-0.2801&-0.3721&-0.1176\\ -0.3162& 0.4507& 0.2712&-0.2981&-0.1143&-0.1518& 0.5532& 0.2156&-0.0740& 0.3747\\ -0.3162& 0.4481& 0.2867& 0.3439& 0.0670&-0.1149&-0.2407& 0.3021& 0.0570&-0.5732\\ -0.3162&-0.1535&-0.0593& 0.2093&-0.1927& 0.7409& 0.1106& 0.2801& 0.3721& 0.1176\\ -0.3162&-0.1563&-0.1028& 0.3594& 0.1623&-0.3476& 0.4070&-0.4531& 0.4630&-0.0585\\ -0.3162&-0.1454&-0.1391&-0.4892& 0.4939&-0.1701&-0.3414& 0.2801& 0.3721& 0.1176\\ -0.3162&-0.1407&-0.0711&-0.4652&-0.6693&-0.0940&-0.0983&-0.2156& 0.0740&-0.3747\\ -0.3162& 0.1524& 0.1156& 0.2604&-0.2105&-0.0860&-0.5665&-0.3021&-0.0570& 0.5732 \end{array} \right) $

$ A_6 = U_6\Sigma_6 V_6^T $ $\ds = \sum_{i=1}^{6} \sigma_i \u_i\v_i^T$

Approximating the 10-by-10 magic square: rank-6

The matrices $U_6$ and $V_6$ are:

$ {\Huge U_6=}\;\; \left( \begin{array}{rrrrrr} -0.3162&-0.3921& 0.1171& 0.4893&-0.1445&-0.1839\\ -0.3162&-0.3442& 0.1773&-0.0238&-0.1595& 0.5724\\ -0.3162&-0.0604&-0.6447&-0.0794&-0.4320&-0.2556\\ -0.3162&-0.3454&-0.0042&-0.4769&-0.0270&-0.0846\\ -0.3162&-0.3654&-0.0663& 0.0292& 0.5937&-0.0349\\ -0.3162& 0.2989&-0.0068& 0.5504&-0.1404&-0.1506\\ -0.3162& 0.3468& 0.0535& 0.0372&-0.1554& 0.6057\\ -0.3162& 0.1906& 0.6923&-0.2003&-0.1098&-0.4156\\ -0.3162& 0.3456&-0.1281&-0.4158&-0.0229&-0.0513\\ -0.3162& 0.3256&-0.1901& 0.0902& 0.5978&-0.0017 \end{array} \right) $

$ {\Huge V_6=}\;\; \left( \begin{array}{rrrrrr} -0.3162&-0.3754& 0.5851&-0.1205& 0.3217& 0.2559\\ -0.3162&-0.4521&-0.2739& 0.2759&-0.1152&-0.3187\\ -0.3162& 0.3722&-0.6124&-0.0758& 0.2570& 0.2860\\ -0.3162& 0.4507& 0.2712&-0.2981&-0.1143&-0.1518\\ -0.3162& 0.4481& 0.2867& 0.3439& 0.0670&-0.1149\\ -0.3162&-0.1535&-0.0593& 0.2093&-0.1927& 0.7409\\ -0.3162&-0.1563&-0.1028& 0.3594& 0.1623&-0.3476\\ -0.3162&-0.1454&-0.1391&-0.4892& 0.4939&-0.1701\\ -0.3162&-0.1407&-0.0711&-0.4652&-0.6693&-0.0940\\ -0.3162& 0.1524& 0.1156& 0.2604&-0.2105&-0.0860 \end{array} \right) $

$ A_6 = U_6\Sigma_6 V_6^T $ $\ds = \sum_{i=1}^{6} \sigma_i \u_i\v_i^T$

Approximating the 10-by-10 magic square: rank-6

A rank-6 approximation:

$\left( \begin{array}{rrrrrr} -0.3162&-0.3921& 0.1171& 0.4893&-0.1445&-0.1839\\ -0.3162&-0.3442& 0.1773&-0.0238&-0.1595& 0.5724\\ -0.3162&-0.0604&-0.6447&-0.0794&-0.4320&-0.2556\\ -0.3162&-0.3454&-0.0042&-0.4769&-0.0270&-0.0846\\ -0.3162&-0.3654&-0.0663& 0.0292& 0.5937&-0.0349\\ -0.3162& 0.2989&-0.0068& 0.5504&-0.1404&-0.1506\\ -0.3162& 0.3468& 0.0535& 0.0372&-0.1554& 0.6057\\ -0.3162& 0.1906& 0.6923&-0.2003&-0.1098&-0.4156\\ -0.3162& 0.3456&-0.1281&-0.4158&-0.0229&-0.0513\\ -0.3162& 0.3256&-0.1901& 0.0902& 0.5978&-0.0017 \end{array} \right) \left(\begin{array}{cccccccccc} 505&0&0&0&0&0\\ 0&254.8589&0&0&0&0\\ 0&0&122.9542&0&0&0\\ 0&0&0&36.8347&0&0\\ 0&0&0&0&30.5167&0\\ 0&0&0&0&0&23.3508 \end{array}\right) \left( \begin{array}{rrrrrr} -0.3162&-0.3754& 0.5851&-0.1205& 0.3217& 0.2559\\ -0.3162&-0.4521&-0.2739& 0.2759&-0.1152&-0.3187\\ -0.3162& 0.3722&-0.6124&-0.0758& 0.2570& 0.2860\\ -0.3162& 0.4507& 0.2712&-0.2981&-0.1143&-0.1518\\ -0.3162& 0.4481& 0.2867& 0.3439& 0.0670&-0.1149\\ -0.3162&-0.1535&-0.0593& 0.2093&-0.1927& 0.7409\\ -0.3162&-0.1563&-0.1028& 0.3594& 0.1623&-0.3476\\ -0.3162&-0.1454&-0.1391&-0.4892& 0.4939&-0.1701\\ -0.3162&-0.1407&-0.0711&-0.4652&-0.6693&-0.0940\\ -0.3162& 0.1524& 0.1156& 0.2604&-0.2105&-0.0860 \end{array} \right)^T$

$ A_6 = U_6\Sigma_6 V_6^T $ $\ds = \sum_{i=1}^{6} \sigma_i \u_i\v_i^T$

Lower-rank approximations: $\,\ds A_k =\sum_{i=1}^{k} \sigma_i \u_i\v_i^T\;$ for $\;k = 5, 4, 3, 2, 1$


Approximating the 10-by-10 magic square: rank-6

${\Huge A=}\;\;\left(\begin{array}{rrrrrrrrrr} 92.0000&99.0000&1.0000&8.0000&15.0000&67.0000&74.0000&51.0000&58.0000&40.0000\\ 98.0000&80.0000&7.0000&14.0000&16.0000&73.0000&55.0000&57.0000&64.0000&41.0000\\ 4.0000&81.0000&88.0000&20.0000&22.0000&54.0000&56.0000&63.0000&70.0000&47.0000\\ 85.0000&87.0000&19.0000&21.0000&3.0000&60.0000&62.0000&69.0000&71.0000&28.0000\\ 86.0000&93.0000&25.0000&2.0000&9.0000&61.0000&68.0000&75.0000&52.0000&34.0000\\ 17.0000&24.0000&76.0000&83.0000&90.0000&42.0000&49.0000&26.0000&33.0000&65.0000\\ 23.0000&5.0000&82.0000&89.0000&91.0000&48.0000&30.0000&32.0000&39.0000&66.0000\\ 79.0000&6.0000&13.0000&95.0000&97.0000&29.0000&31.0000&38.0000&45.0000&72.0000\\ 10.0000&12.0000&94.0000&96.0000&78.0000&35.0000&37.0000&44.0000&46.0000&53.0000\\ 11.0000&18.0000&100.0000&77.0000&84.0000&36.0000&43.0000&50.0000&27.0000&59.0000 \end{array}\right)$

${\Huge A_6=}\;\;\left(\begin{array}{rrrrrrrrrr} 91.7464&98.5805&0.7630&5.1421&16.2435&66.4286&71.8975&52.7639&58.5080&42.9264\\ 98.1473&80.2437&7.1377&15.6605&15.2775&73.3320&56.2216&55.9752&63.7048&39.2997\\ 4.4749&81.7856&88.4438&25.3526&19.6711&55.0702&59.9377&59.6965&69.0485&41.5191\\ 84.5843&86.3123&18.6115&16.3148&5.0385&59.0632&58.5533&71.8916&71.8329&32.7976\\ 86.1816&93.3004&25.1697&4.0469&8.1094&61.4093&69.5058&73.7367&51.6361&31.9040\\ 16.6973&23.4993&75.7172&79.5887&91.4842&41.3179&46.4905&28.1054&33.6064&68.4931\\ 23.0982&5.1625&82.0918&90.1072&90.5183&48.2214&30.8145&31.3167&38.8032&64.8663\\ 79.4021&6.6652&13.3758&99.5323&95.0280&29.9062&34.3342&35.2027&44.1943&67.3590\\ 9.5352&11.2311&93.5657&90.7614&80.2793&33.9526&33.1462&47.2332&46.9312&58.3642\\ 11.1325&18.2192&100.1238&78.4935&83.3502&36.2986&44.0987&49.0782&26.7345&57.4706 \end{array}\right)$


Lower-rank approximations

$\ds A_5 = U_5\Sigma_5 V_5^T = \sum_{i=1}^{5} \sigma_i \u_i\v_i^T$

$\ds A_4 = U_4\Sigma_4 V_4^T = \sum_{i=1}^{4} \sigma_i \u_i\v_i^T$

$\ds A_3 = U_3\Sigma_3 V_3^T = \sum_{i=1}^{3} \sigma_i \u_i\v_i^T$

$\ds A_2 = U_2\Sigma_2 V_2^T = \sum_{i=1}^{2} \sigma_i \u_i\v_i^T$

$\ds A_1 = U_1 \Sigma_1 V_1^T = \sum_{i=1}^{1} \sigma_i \u_i\v_i^T$


Approximating the 10-by-10 magic square: rank-5

${\Huge A=}\;\;\left(\begin{array}{rrrrrrrrrr} 92.0000&99.0000&1.0000&8.0000&15.0000&67.0000&74.0000&51.0000&58.0000&40.0000\\ 98.0000&80.0000&7.0000&14.0000&16.0000&73.0000&55.0000&57.0000&64.0000&41.0000\\ 4.0000&81.0000&88.0000&20.0000&22.0000&54.0000&56.0000&63.0000&70.0000&47.0000\\ 85.0000&87.0000&19.0000&21.0000&3.0000&60.0000&62.0000&69.0000&71.0000&28.0000\\ 86.0000&93.0000&25.0000&2.0000&9.0000&61.0000&68.0000&75.0000&52.0000&34.0000\\ 17.0000&24.0000&76.0000&83.0000&90.0000&42.0000&49.0000&26.0000&33.0000&65.0000\\ 23.0000&5.0000&82.0000&89.0000&91.0000&48.0000&30.0000&32.0000&39.0000&66.0000\\ 79.0000&6.0000&13.0000&95.0000&97.0000&29.0000&31.0000&38.0000&45.0000&72.0000\\ 10.0000&12.0000&94.0000&96.0000&78.0000&35.0000&37.0000&44.0000&46.0000&53.0000\\ 11.0000&18.0000&100.0000&77.0000&84.0000&36.0000&43.0000&50.0000&27.0000&59.0000 \end{array}\right)$

${\Huge A_5=}\;\;\left(\begin{array}{rrrrrrrrrr} 92.8453&97.2123&1.9911&4.4904&15.7503&69.6099&70.4052&52.0336&58.1046&42.5574\\ 94.7265&84.5031&3.3147&17.6891&16.8129&63.4285&60.8674&58.2485&64.9607&40.4487\\ 6.0022&79.8840&90.1506&24.4469&18.9857&59.4917&57.8635&58.6815&68.4878&41.0061\\ 85.0896&85.6831&19.1762&16.0151&4.8117&60.5261&57.8670&71.5558&71.6473&32.6278\\ 86.3904&93.0405&25.4030&3.9231&8.0157&62.0136&69.2223&73.5980&51.5595&31.8339\\ 17.5975&22.3785&76.7231&79.0549&91.0802&43.9240&45.2680&27.5072&33.2759&68.1907\\ 19.4787&9.6693&78.0468&92.2536&92.1428&37.7426&35.7301&33.7221&40.1320&66.0820\\ 81.8856&3.5730&16.1511&98.0596&93.9134&37.0959&30.9615&33.5524&43.2826&66.5249\\ 9.8418&10.8493&93.9083&90.5796&80.1417&34.8402&32.7298&47.0294&46.8187&58.2612\\ 11.1426&18.2067&100.1350&78.4876&83.3457&36.3277&44.0851&49.0715&26.7308&57.4673 \end{array}\right)$


Approximating the 10-by-10 magic square: rank-4

${\Huge A=}\;\;\left(\begin{array}{rrrrrrrrrr} 92.0000&99.0000&1.0000&8.0000&15.0000&67.0000&74.0000&51.0000&58.0000&40.0000\\ 98.0000&80.0000&7.0000&14.0000&16.0000&73.0000&55.0000&57.0000&64.0000&41.0000\\ 4.0000&81.0000&88.0000&20.0000&22.0000&54.0000&56.0000&63.0000&70.0000&47.0000\\ 85.0000&87.0000&19.0000&21.0000&3.0000&60.0000&62.0000&69.0000&71.0000&28.0000\\ 86.0000&93.0000&25.0000&2.0000&9.0000&61.0000&68.0000&75.0000&52.0000&34.0000\\ 17.0000&24.0000&76.0000&83.0000&90.0000&42.0000&49.0000&26.0000&33.0000&65.0000\\ 23.0000&5.0000&82.0000&89.0000&91.0000&48.0000&30.0000&32.0000&39.0000&66.0000\\ 79.0000&6.0000&13.0000&95.0000&97.0000&29.0000&31.0000&38.0000&45.0000&72.0000\\ 10.0000&12.0000&94.0000&96.0000&78.0000&35.0000&37.0000&44.0000&46.0000&53.0000\\ 11.0000&18.0000&100.0000&77.0000&84.0000&36.0000&43.0000&50.0000&27.0000&59.0000 \end{array}\right)$

${\Huge A_4=}\;\;\left(\begin{array}{rrrrrrrrrr} 94.2640&96.7042&3.1244&3.9865&16.0458&68.7601&71.1207&54.2116&55.1534&41.6292\\ 96.2928&83.9422&4.5659&17.1328&17.1392&62.4903&61.6574&60.6532&61.7023&39.4240\\ 10.2433&78.3650&93.5386&22.9404&19.8691&56.9514&60.0027&65.1928&59.6651&38.2315\\ 85.3551&85.5881&19.3883&15.9208&4.8670&60.3671&58.0009&71.9635&71.0950&32.4541\\ 80.5615&95.1281&20.7466&5.9936&6.8015&65.5048&66.2824&64.6491&63.6851&35.6472\\ 18.9756&21.8849&77.8241&78.5654&91.3673&43.0985&45.9631&29.6230&30.4090&67.2891\\ 21.0044&9.1229&79.2656&91.7116&92.4607&36.8287&36.4997&36.0646&36.9580&65.0838\\ 82.9633&3.1870&17.0121&97.6768&94.1379&36.4504&31.5051&35.2069&41.0407&65.8198\\ 10.0668&10.7688&94.0880&90.4997&80.1885&34.7055&32.8433&47.3748&46.3506&58.1140\\ 5.2732&20.3088&95.4463&80.5725&82.1230&39.8432&41.1247&40.0605&38.9407&61.3071 \end{array}\right)$


Approximating the 10-by-10 magic square: rank-3

${\Huge A=}\;\;\left(\begin{array}{rrrrrrrrrr} 92.0000&99.0000&1.0000&8.0000&15.0000&67.0000&74.0000&51.0000&58.0000&40.0000\\ 98.0000&80.0000&7.0000&14.0000&16.0000&73.0000&55.0000&57.0000&64.0000&41.0000\\ 4.0000&81.0000&88.0000&20.0000&22.0000&54.0000&56.0000&63.0000&70.0000&47.0000\\ 85.0000&87.0000&19.0000&21.0000&3.0000&60.0000&62.0000&69.0000&71.0000&28.0000\\ 86.0000&93.0000&25.0000&2.0000&9.0000&61.0000&68.0000&75.0000&52.0000&34.0000\\ 17.0000&24.0000&76.0000&83.0000&90.0000&42.0000&49.0000&26.0000&33.0000&65.0000\\ 23.0000&5.0000&82.0000&89.0000&91.0000&48.0000&30.0000&32.0000&39.0000&66.0000\\ 79.0000&6.0000&13.0000&95.0000&97.0000&29.0000&31.0000&38.0000&45.0000&72.0000\\ 10.0000&12.0000&94.0000&96.0000&78.0000&35.0000&37.0000&44.0000&46.0000&53.0000\\ 11.0000&18.0000&100.0000&77.0000&84.0000&36.0000&43.0000&50.0000&27.0000&59.0000 \end{array}\right)$

${\Huge A_3=}\;\;\left(\begin{array}{rrrrrrrrrr} 96.4360&91.7321&4.4910&9.3600&9.8470&64.9875&64.6427&63.0288&63.5387&36.9363\\ 96.1869&84.1844&4.4994&16.8710&17.4412&62.6741&61.9730&60.2236&61.2938&39.6526\\ 9.8910&79.1715&93.3169&22.0689&20.8745&57.5633&61.0533&63.7628&58.3051&38.9926\\ 83.2385&90.4334&18.0566&10.6844&10.9077&64.0435&64.3137&63.3712&62.9237&37.0273\\ 80.6910&94.8317&20.8281&6.3140&6.4319&65.2799&65.8961&65.1748&64.1850&35.3674\\ 21.4184&16.2928&79.3611&84.6088&84.3956&38.8555&38.6774&39.5395&39.8398&62.0111\\ 21.1694&8.7452&79.3694&92.1198&91.9898&36.5421&36.0077&36.7343&37.5949&64.7274\\ 82.0742&5.2224&16.4526&95.4771&96.6754&37.9947&34.1569&31.5976&37.6082&67.7409\\ 8.2210&14.9941&92.9267&85.9332&85.4563&37.9115&38.3484&39.8819&39.2248&62.1021\\ 5.6735&19.3924&95.6982&81.5628&80.9805&39.1478&39.9308&41.6855&40.4861&60.4422 \end{array}\right)$


Approximating the 10-by-10 magic square: rank-2

${\Huge A=}\;\;\left(\begin{array}{rrrrrrrrrr} 92.0000&99.0000&1.0000&8.0000&15.0000&67.0000&74.0000&51.0000&58.0000&40.0000\\ 98.0000&80.0000&7.0000&14.0000&16.0000&73.0000&55.0000&57.0000&64.0000&41.0000\\ 4.0000&81.0000&88.0000&20.0000&22.0000&54.0000&56.0000&63.0000&70.0000&47.0000\\ 85.0000&87.0000&19.0000&21.0000&3.0000&60.0000&62.0000&69.0000&71.0000&28.0000\\ 86.0000&93.0000&25.0000&2.0000&9.0000&61.0000&68.0000&75.0000&52.0000&34.0000\\ 17.0000&24.0000&76.0000&83.0000&90.0000&42.0000&49.0000&26.0000&33.0000&65.0000\\ 23.0000&5.0000&82.0000&89.0000&91.0000&48.0000&30.0000&32.0000&39.0000&66.0000\\ 79.0000&6.0000&13.0000&95.0000&97.0000&29.0000&31.0000&38.0000&45.0000&72.0000\\ 10.0000&12.0000&94.0000&96.0000&78.0000&35.0000&37.0000&44.0000&46.0000&53.0000\\ 11.0000&18.0000&100.0000&77.0000&84.0000&36.0000&43.0000&50.0000&27.0000&59.0000 \end{array}\right)$

${\Huge A_2=}\;\;\left(\begin{array}{rrrrrrrrrr} 88.0141&95.6750&13.3049&5.4570&5.7198&65.8411&66.1222&65.0307&64.5627&35.2726\\ 83.4313&90.1563&17.8487&10.9595&11.1902&63.9670&64.2137&63.2556&62.8448&37.1328\\ 56.2757&57.4552&44.7734&43.5652&43.6056&52.8619&52.9052&52.7372&52.6651&48.1556\\ 83.5430&90.2908&17.7380&10.8255&11.0569&64.0127&64.2602&63.2988&62.8867&37.0875\\ 85.4598&92.5991&15.8375&8.5240&8.7688&64.7965&65.0584&64.0413&63.6052&36.3094\\ 21.9047&16.0652&78.8522&84.8342&84.6339&38.8062&38.5919&39.4239&39.7806&62.1071\\ 17.3220&10.5465&83.3960&90.3367&90.1044&36.9321&36.6835&37.6488&38.0627&63.9673\\ 32.2655&28.5417&68.5795&72.3941&72.2664&43.0431&42.9065&43.4371&43.6645&57.9016\\ 17.4336&10.6810&83.2852&90.2026&89.9710&36.9778&36.7300&37.6921&38.1046&63.9220\\ 19.3504&12.9892&81.3848&87.9012&87.6830&37.7616&37.5282&38.4345&38.8231&63.1440 \end{array}\right)$


Approximating the 10-by-10 magic square: rank-1

${\Huge A=}\;\;\left(\begin{array}{rrrrrrrrrr} 92.0000&99.0000&1.0000&8.0000&15.0000&67.0000&74.0000&51.0000&58.0000&40.0000\\ 98.0000&80.0000&7.0000&14.0000&16.0000&73.0000&55.0000&57.0000&64.0000&41.0000\\ 4.0000&81.0000&88.0000&20.0000&22.0000&54.0000&56.0000&63.0000&70.0000&47.0000\\ 85.0000&87.0000&19.0000&21.0000&3.0000&60.0000&62.0000&69.0000&71.0000&28.0000\\ 86.0000&93.0000&25.0000&2.0000&9.0000&61.0000&68.0000&75.0000&52.0000&34.0000\\ 17.0000&24.0000&76.0000&83.0000&90.0000&42.0000&49.0000&26.0000&33.0000&65.0000\\ 23.0000&5.0000&82.0000&89.0000&91.0000&48.0000&30.0000&32.0000&39.0000&66.0000\\ 79.0000&6.0000&13.0000&95.0000&97.0000&29.0000&31.0000&38.0000&45.0000&72.0000\\ 10.0000&12.0000&94.0000&96.0000&78.0000&35.0000&37.0000&44.0000&46.0000&53.0000\\ 11.0000&18.0000&100.0000&77.0000&84.0000&36.0000&43.0000&50.0000&27.0000&59.0000 \end{array}\right)$

${\Huge A_1=}\;\;\left(\begin{array}{rrrrrrrrrr} 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000\\ 50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000&50.5000 \end{array}\right)$


Approximating the 10-by-10 magic square: An alternative representation

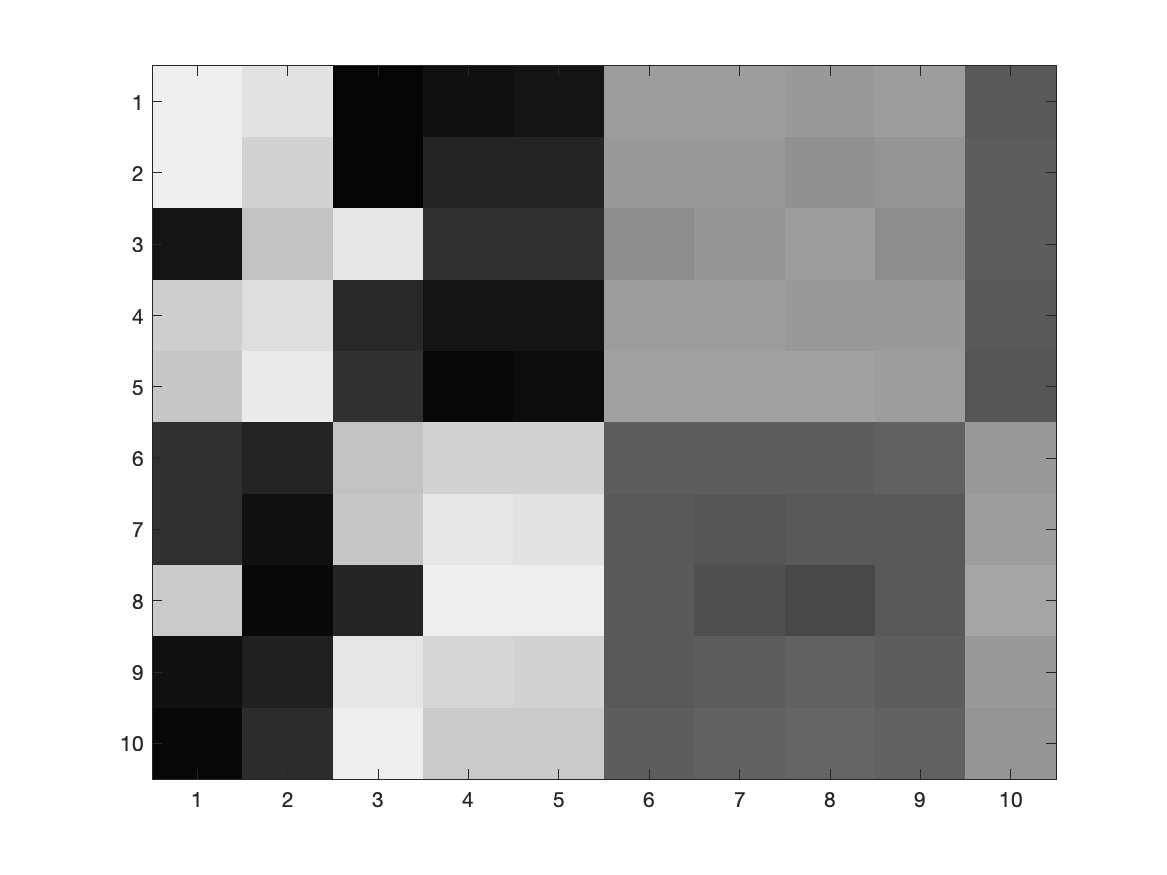

We can represent the $10\times 10$ magic square matrix and the SVD approximations from rank 6 down to rank 1, as images generated with the computer.

$\begin{pmatrix} 92&99&1&8&15&67&74&51&58&40\\ 98&80&7&14&16&73&55&57&64&41\\ 4&81&88&20&22&54&56&63&70&47\\ 85&87&19&21&3&60&62&69&71&28\\ 86&93&25&2&9&61&68&75&52&34\\ 17&24&76&83&90&42&49&26&33&65\\ 23&5&82&89&91&48&30&32&39&66\\ 79&6&13&95&97&29&31&38&45&72\\ 10&12&94&96&78&35&37&44&46&53\\ 11&18&100&77&84&36&43&50&27&59 \end{pmatrix}$

The values in the matrices have been rescaled to fit in the range [0, 63], and a shade of gray assigned ranging from black (0) to white (63).

Approximating the 10-by-10 magic square: An alternative representation

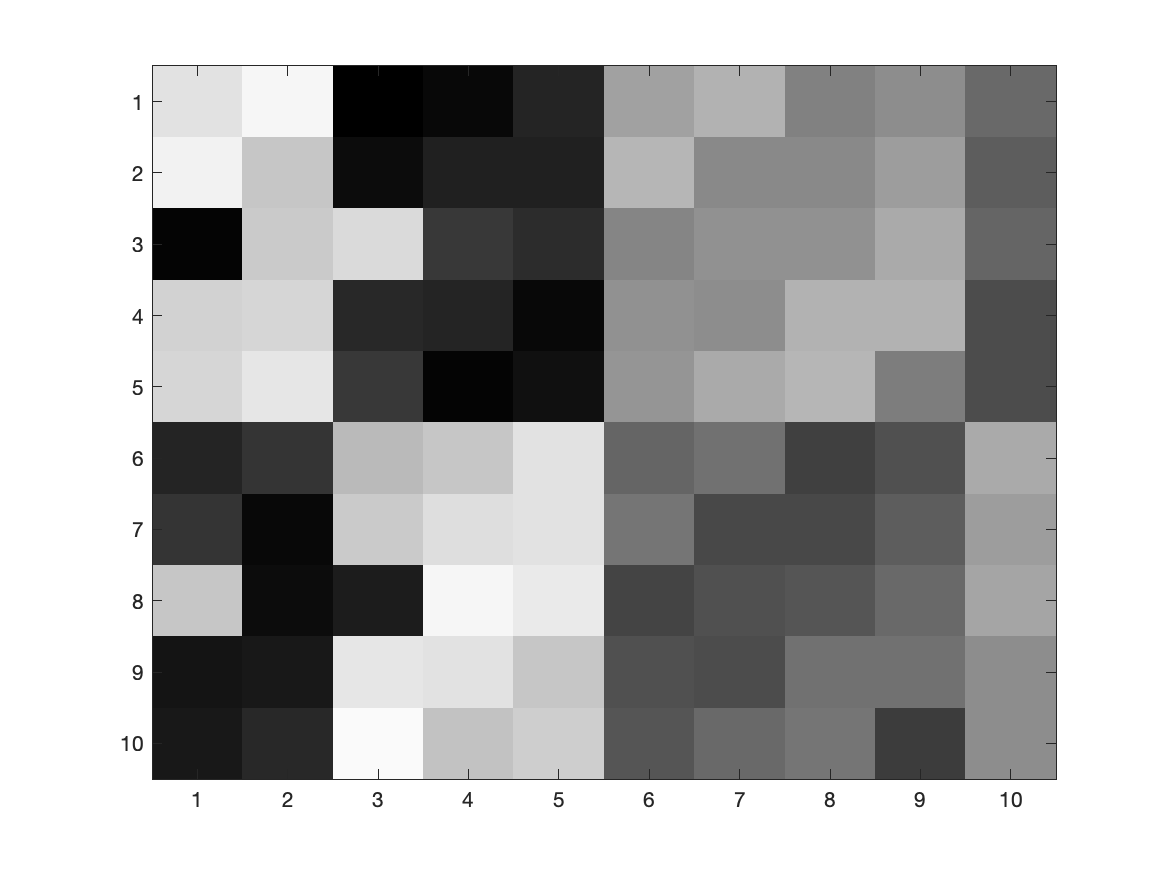

Original Rank-6


Approximating the 10-by-10 magic square: An alternative representation
Original Rank-5

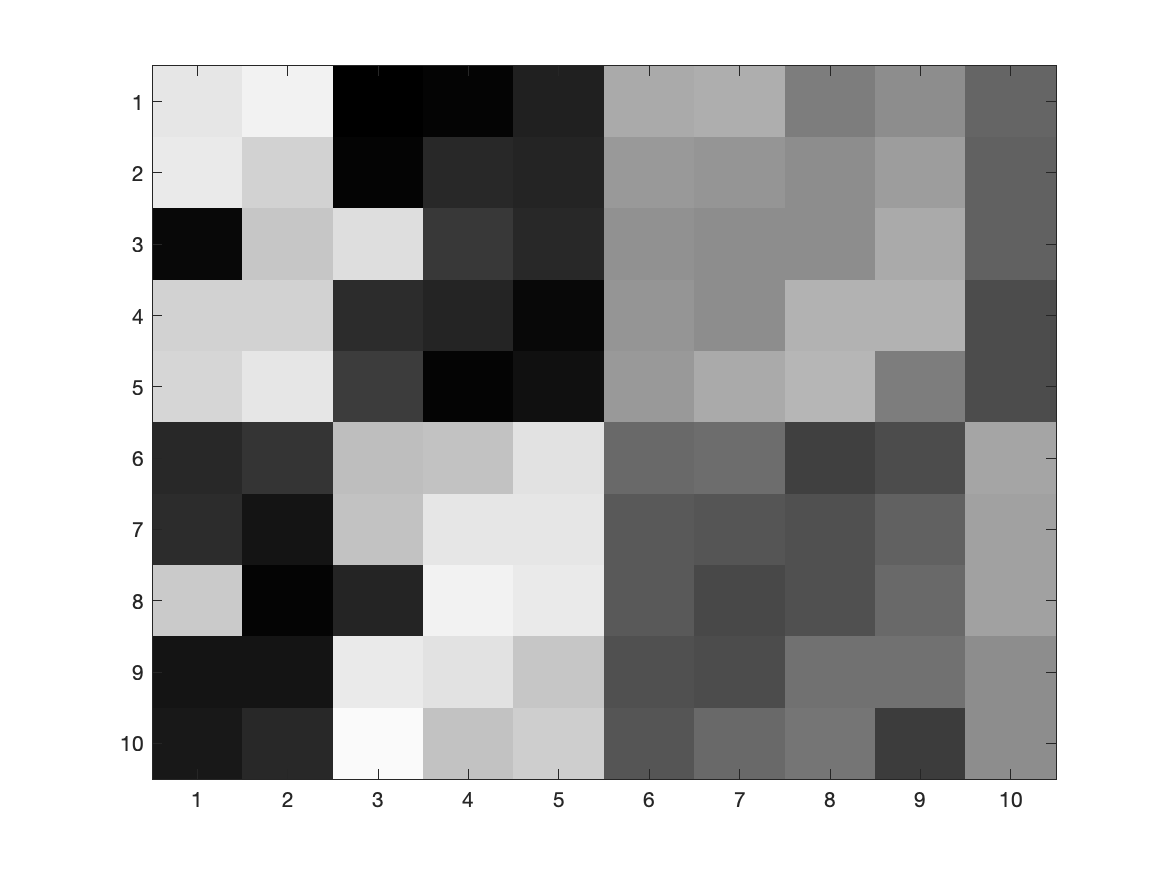

Approximating the 10-by-10 magic square: An alternative representation
Original Rank-4

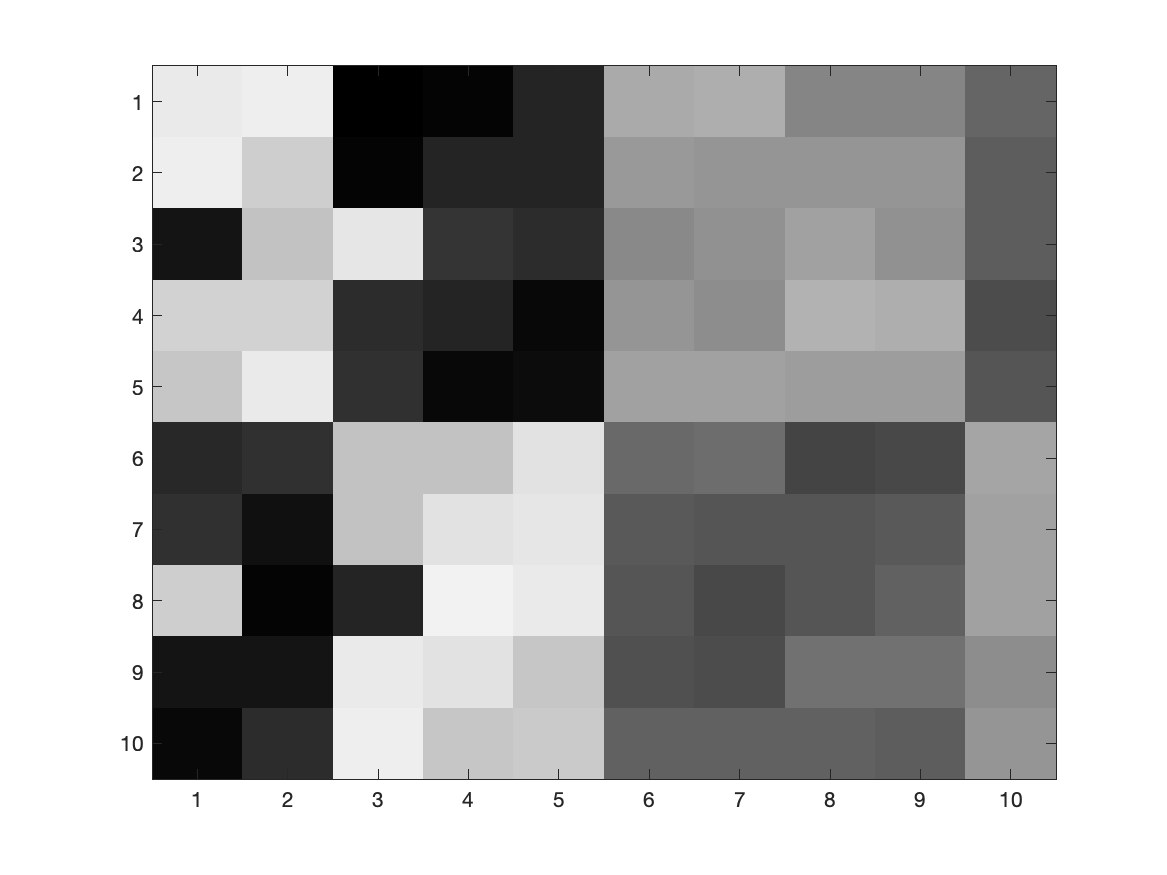

Approximating the 10-by-10 magic square: An alternative representation
Original Rank-3

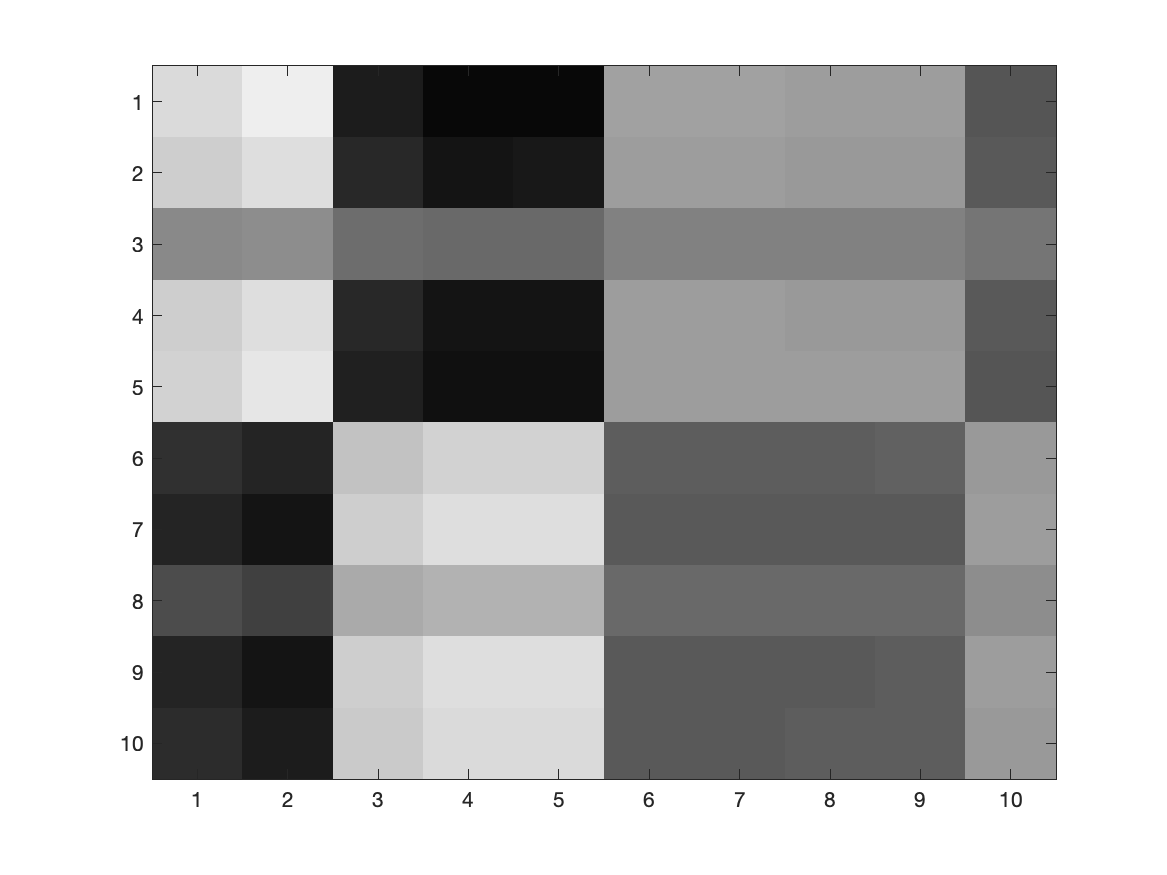

Approximating the 10-by-10 magic square: An alternative representation
Original Rank-2

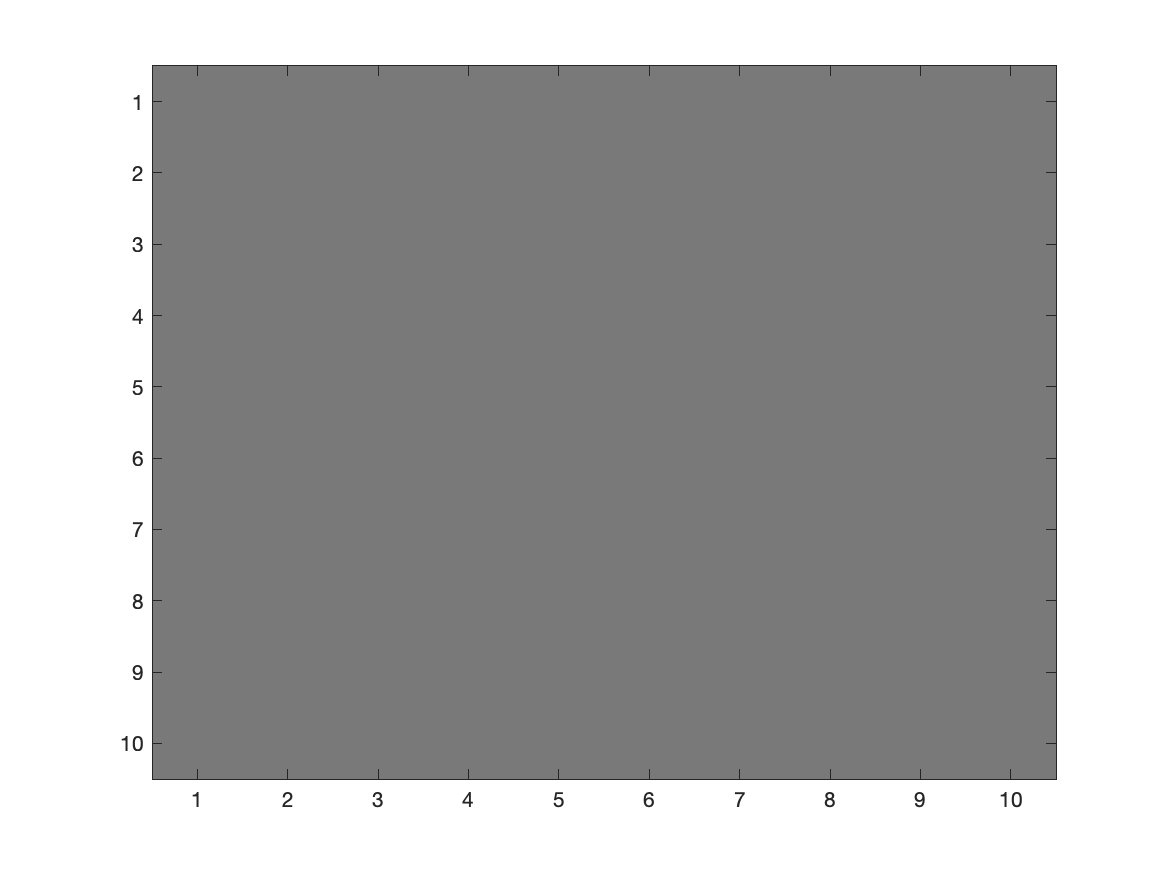

Approximating the 10-by-10 magic square: An alternative representation
Original Rank-1


Approximating the 10-by-10 magic square - Octave / MATLAB 💻

>> A = magic(10) % Create a magic square.
A =
    92    99     1     8    15    67    74    51    58    40
    98    80     7    14    16    73    55    57    64    41
     4    81    88    20    22    54    56    63    70    47
    85    87    19    21     3    60    62    69    71    28
    86    93    25     2     9    61    68    75    52    34
    17    24    76    83    90    42    49    26    33    65
    23     5    82    89    91    48    30    32    39    66
    79     6    13    95    97    29    31    38    45    72
    10    12    94    96    78    35    37    44    46    53
    11    18   100    77    84    36    43    50    27    59

Command: [U, S, V] = svd(A)

computes the singular value decomposition of a matrix.

💡 Command: [U, S, V] = svds(A, r)

produces a rank-$r$ decomposition, whose factors can be
multiplied together to generate the approximation.


Approximating the 10-by-10 magic square - Octave / MATLAB

>> A = magic(10);
>> [U_6, S_6, V_6] = svds(A, 6); % Perform rank-6 approximation
>> A_6 = U_6 * S_6 * V_6' % Construct the rank-6 approximation to A.

A_6 =
 Columns 1 through 7:
    91.7464    98.5805     0.7630     5.1421    16.2435    66.4286    71.8975
    98.1473    80.2437     7.1377    15.6605    15.2775    73.3320    56.2216
     4.4749    81.7856    88.4438    25.3526    19.6711    55.0702    59.9377
    84.5843    86.3123    18.6115    16.3148     5.0385    59.0632    58.5533
    86.1816    93.3004    25.1697     4.0469     8.1094    61.4093    69.5058
    16.6973    23.4993    75.7172    79.5887    91.4842    41.3179    46.4905
    23.0982     5.1625    82.0918    90.1072    90.5183    48.2214    30.8145
    79.4021     6.6652    13.3758    99.5323    95.0280    29.9062    34.3342
     9.5352    11.2311    93.5657    90.7614    80.2793    33.9526    33.1462
    11.1325    18.2192   100.1238    78.4935    83.3502    36.2986    44.0987

 Columns 8 through 10:
    52.7639    58.5080    42.9264
    55.9752    63.7048    39.2997
    59.6965    69.0485    41.5191
    71.8916    71.8329    32.7976
    73.7367    51.6361    31.9040
    28.1054    33.6064    68.4931
    31.3167    38.8032    64.8663
    35.2027    44.1943    67.3590
    47.2332    46.9312    58.3642
    49.0782    26.7345    57.4706

Key points so far . . .

  • The SVD expresses a matrix as a sum: $\,A = \ds \sum_{i=1}^r \sigma_i\u_i\v_i^T.$
  • The terms are ordered by "significance", so we can truncate the expansion to obtain an approximation $\,A \approx \ds \sum_{i=1}^k \sigma_i\u_i\v_i^T$, with $\,k\lt r.$
  • The approximation requires only $k(m+n+1)$ numbers instead of $mn$.
  • We can visualise the effect of these approximations by viewing matrices as images.

💡 This suggests that we could approximate an image using the SVD, and in the process store it with fewer pieces of information. This is exactly what we aim to achieve in image compression.


Images as Matrices

Images as Matrices

A digital image can be represented by matrices of numbers.

Colour image

$\iff$

Three matrices

\( \color{red}{{\Large R =} \begin{pmatrix} 255 & 120 & \cdots \\ 240 & 110 & \cdots \\ 198 & 95 & \cdots \\ \vdots & \vdots & \ddots \end{pmatrix}} \; \color{darkgreen}{{\Large G =} \begin{pmatrix} 80 & 180 & \cdots \\ 75 & 165 & \cdots \\ 60 & 140 & \cdots \\ \vdots & \vdots & \ddots \end{pmatrix}} \; \color{blue}{{\Large B =} \begin{pmatrix} 30 & 90 & \cdots \\ 25 & 85 & \cdots \\ 20 & 70 & \cdots \\ \vdots & \vdots & \ddots \end{pmatrix}} \)


Each matrix stores the intensity of one colour channel at each pixel.

Images as Matrices

A grayscale image can be represented by a single matrix.

Grayscale image

$\Longleftrightarrow$

Intensity matrix

${\Large A =}\, \begin{pmatrix} 255 & 254 & 250 & \cdots \\ 248 & 245 & 241 & \cdots \\ \vdots & \vdots & \vdots & \ddots \end{pmatrix}$


Each entry of $A$ represents the intensity of one pixel.

Thus, an $m\times n$ grayscale image corresponds to a matrix $A\in\mathbb{R}^{m\times n}$.


SVD Image Compression

Workflow for compressing image data using SVD truncation:

  1. Matrix Representation: Convert image pixels into intensity matrix $A \in \mathbb{R}^{m \times n}$.
  2. Factorisation: Compute full SVD: $A = U \Sigma V^T$.
  3. Rank Culling: Eliminate zero singular values to determine exact rank $r$.
  4. Compression: Discard smallest $\sigma_i$ values along with corresponding columns of $U$ and rows of $V^T$.
Reduces parameter storage from $m \times n$ down to $k \times (m + n + 1)$ while preserving dominant visual structure.

SVD Image Compression: The Scream

Goal: Use the SVD to obtain approximations of various ranks to Norwegian artist Edvard Munch's famous painting The Scream (1893).

Color Model: RGB (B&W)
Image size: 1094✕1504 pixels
Type: JPEG image

SVD Image Compression: The Scream

Original (1094✕1504 pixels) 45% compression

SVD Image Compression: The Scream

Original (1094✕1504 pixels) 76% compression

SVD Image Compression: The Scream

Original (1094✕1504 pixels) 87% compression

SVD Image Compression: The Scream

Original (1094✕1504 pixels) 92% compression

SVD Image Compression: The Scream

Original (1094✕1504 pixels) 98% compression

SVD Image Compression: The Scream

Original

45%

76%

87%

92%

98%

Level of compression is computed as: \[ 1- r\frac{1+ m + n}{mn} \] where $r$ is the rank for the approximation,
and $m,n$ are the dimensions of the image.

👉 $\,r=350,\,150,\,80,\,50,$ and $10$

$\Rightarrow \,45\%,\,76\%,\,87\%,\,92\%,$ and $98\%;$
$\quad \,$respectively.

Edvard Munch's The Scream, compressed to various levels. The percentage shows the reduction in storage data required compared to the original, obtained by reducing the rank of the SVD approximation.

Octave / MATLAB

Run code locally! 💻 😃

svd_compression/
├── svd_image_compression.m
└── picture_file.jpg

Warning: It requires a little more
knowledge of Octave / MATLAB❗️

r = 10;  % Rank

% Load image
a = imread("picture_file.jpg");

% RGB channels
R = double(a(:, :, 1));
G = double(a(:, :, 2));
B = double(a(:, :, 3));

% Rank-r SVD approximation of each channel
[U,S,V] = svd(R, "econ");
Rr = U(:,1:r) * S(1:r,1:r) * V(:,1:r)';

[U,S,V] = svd(G, "econ");
Gr = U(:,1:r) * S(1:r,1:r) * V(:,1:r)';

[U,S,V] = svd(B, "econ");
Br = U(:,1:r) * S(1:r,1:r) * V(:,1:r)';

% Reconstruct image
a_out = cat(3, Rr, Gr, Br);
a_out = uint8(max(0, min(255, a_out)));

% Compression
[m,n,~] = size(a);
comp = round((1 - r*(1+m+n)/(m*n))*100);

% Display
subplot(1,2,1);
imshow(a);
title("Original");

subplot(1,2,2);
imshow(a_out);
title(sprintf("Rank-%d Approximation / Compression %d%%", r, comp));

Python 🐍

Run code locally! 💻 😃

svd_compression/
├── svd_image_compression.py
└── picture_file.jpg

Warning: It requires a more advanced
knowledge of Python❗️❗️❗️🧐

import numpy as np
from scipy.sparse.linalg import svds
import matplotlib.pyplot as plt
from PIL import Image

r = 10  # Rank
# Load image from local folder
a = np.array(Image.open("picture_file.jpg"))
R = a[:, :, 0].astype(float)
G = a[:, :, 1].astype(float)
B = a[:, :, 2].astype(float)

# Function for rank-r SVD approximation
def svd_approx(X, r):
    U, S, Vt = svds(X, k=r)
    # Reverse order: svds returns smallest → largest
    S = np.diag(S[::-1])
    U = U[:, ::-1]
    Vt = Vt[::-1, :]
    return U @ S @ Vt

# Apply to each channel
R_approx = svd_approx(R, r)
G_approx = svd_approx(G, r)
B_approx = svd_approx(B, r)
# Reconstruct image
a_out = np.stack([R_approx, G_approx, B_approx], axis=2)
a_out = np.clip(a_out, 0, 255).astype(np.uint8)
# Compression
m, n, _ = a.shape
comp = round((1 - r * (1 + m + n) / (m * n)), 2) * 100

# Display
fig, axes = plt.subplots(1, 2, figsize=(15, 10))
axes[0].imshow(a)
axes[0].set_title("Original")
axes[0].axis("off")
axes[1].imshow(a_out)
axes[1].set_title(f"Rank-{r} Approximation / Compression {comp}%")
axes[1].axis("off")
plt.show()

From Theory to Computation

Theoretically: we can compute the SVD using the linear algebra we have learned.

However, computing an SVD by hand becomes very time-consuming for large matrices.

💻 This is where the computer helps us: it performs the numerical calculations quickly and accurately.

Technology changes quickly!

But the mathematical theory lasts much longer!

😃

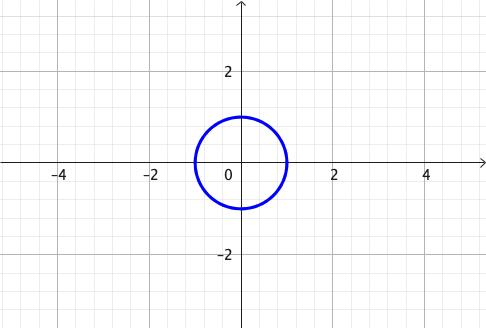

Geometric Interpretation: Action on Unit Circle

Consider transformation of unit circle points $\mathbf x \in \mathbb{R}^2$ ($\|\mathbf{x}\| = 1$) under matrix $A$:

$ A = \begin{pmatrix} 3 & 4 \\ 1 & 2 \end{pmatrix} $

Maps unit circle into an ellipse in $\mathbb{R}^2$.

Key Questions:

  • Which direction produces the
    most stretching?
  • Which direction produces the
    least stretching?

Finding the Directions of Maximum and Minimum Stretch

A point $\mathbf{x}$ on the unit circle satisfies $\|\mathbf{x}\|=1$ and is mapped to $A\mathbf{x}$.

Question: Which direction $\mathbf{x}$ produces the largest or smallest value of $\|A\mathbf{x}\|$?

$ \|A\mathbf{x}\| $ $= \sqrt{\left(A\mathbf{x}\right)^T\left(A\mathbf{x}\right)} $ $ = \sqrt{\mathbf{x}^T A^T A\,\mathbf{x}}.$

So we need to understand the symmetric matrix $A^T A$.

Key idea: The directions of greatest and least stretching are hidden in the eigenvectors of $A^T A$.



Principal Directions of Stretching

Let $\v_1,\v_2$ be orthonormal eigenvectors of $A^T A$:

$ A^T A\,\v_i = \lambda_i \v_i, \qquad \lambda_1 > \lambda_2 > 0. $

Any unit vector can be written as

$ \mathbf{x}=c_1\v_1+c_2\v_2, \qquad c_1^2+c_2^2=1. $

Thus $\, \|A\mathbf{x}\|^2 = \lambda_1c_1^2+\lambda_2c_2^2. $

Maximum Stretch

$c_1=1,\;c_2=0$ $\;\Longrightarrow\; \mathbf{x}=\v_1$

$\|A\v_1\|=\sqrt{\lambda_1}=\sigma_1 \qquad \qquad$

Minimum Stretch

$c_1=0,\;c_2=1$ $\;\Longrightarrow\; \mathbf{x}=\v_2$

$\|A\v_2\|=\sqrt{\lambda_2}=\sigma_2\qquad \qquad$

Therefore, the eigenvectors of $A^T A$ give the principal directions, while their eigenvalues determine the amount of stretching.


From $A^T A$ to the SVD

  • The eigenvalues of $A^T A$ satisfy

    $\lambda_i=\sigma_i^2,$

    where $\sigma_i$ are the singular values of $A$.
  • The corresponding eigenvectors $\v_i$ are the columns of $V$ in

    $A=U\Sigma V^T.$

  • Thus, the columns of $V$ give the principal directions in the original space.
  • The singular values $\sigma_i$ give the corresponding stretching factors.

$ \v_i \xrightarrow{\;A\;} \sigma_i\,\u_i $

$V$: directions     $\Sigma$: stretching     $U$: resulting directions


Geometric Meaning of the Principal Directions

$\qquad A = \begin{pmatrix} 3 & 4 \\ 1 & 2 \end{pmatrix} $

$ \qquad \color{red}{\v_1} \xrightarrow{\ A\ } \color{red}{\sigma_1 \u_1} $

$ \qquad \color{blue}{\v_2} \xrightarrow{\ A\ } \color{blue}{\sigma_2 \u_2} $

$\displaystyle \color{red}{\v_1 \approx \begin{pmatrix}-0.572\\-0.820\end{pmatrix}}, $ $\qquad\color{red}{ \sigma_1\approx5.465} $
$\displaystyle \color{blue}{\v_2 \approx \begin{pmatrix}-0.820\\0.572\end{pmatrix}},$ $\qquad \color{blue}{\sigma_2\approx0.366} $

Eigenvectors of $A^TA,$ with corresponding stretching factors.

👉 $\,A= U\Sigma V^T$ $= \begin{pmatrix} \color{red}{-0.915} & \color{blue}{-0.405} \\ \color{red}{-0.404} & \color{blue}{0.915} \end{pmatrix} \begin{pmatrix} \color{red}{5.465} & 0 \\ 0 & \color{blue}{0.37} \end{pmatrix} \begin{pmatrix} \color{red}{-0.572} & \color{blue}{-0.820} \\ \color{red}{-0.820} & \color{blue}{0.572} \end{pmatrix}^T $


From SVD to Principal Component Analysis (PCA)

So far, we have considered the action of a matrix $A$ on vectors $\mathbf{x}$.

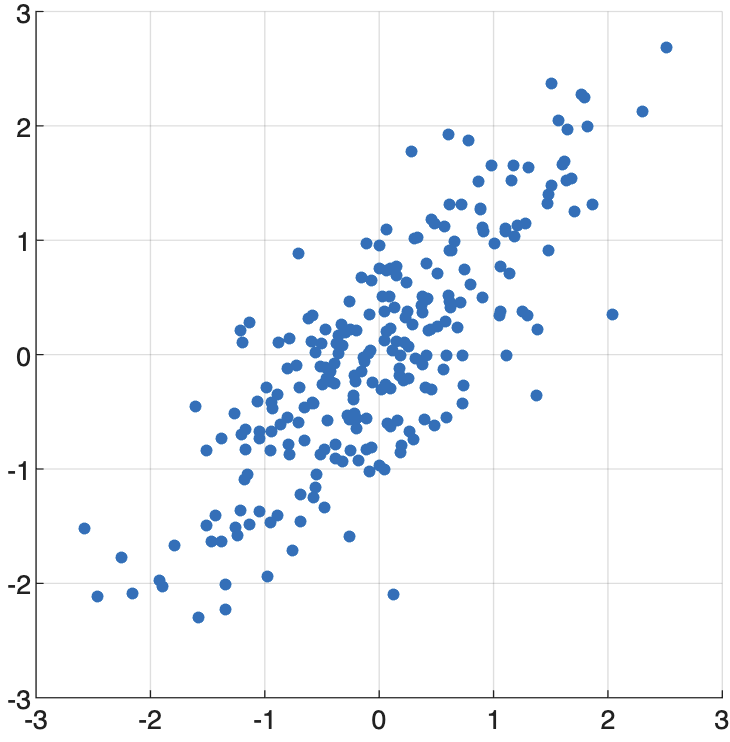

What if instead we have a set of data stored in a matrix $X$?

$ X= \begin{pmatrix} x_1 & y_1\\ x_2 & y_2\\ \vdots & \vdots\\ x_m & y_m \end{pmatrix} $

Can we find the directions in which the data have the greatest spread?

Which direction captures the most variation? 🤔


Finding the Direction of Greatest Spread

Let $\mathbf v$ be a unit vector: $\|\mathbf v\|=1$. Multiplying by $\,X\,$ gives $\,X\v.$

The entries of $X\mathbf v$ are the projections of the observations onto the direction $\mathbf v$.

Therefore, the direction of greatest spread maximises

\( \|X\mathbf v\|\; \) subject to \(\; \|\mathbf v\|=1. \)

But this is exactly the problem we solved when studying the maximum stretching of a matrix!

$X=U\Sigma V^T$

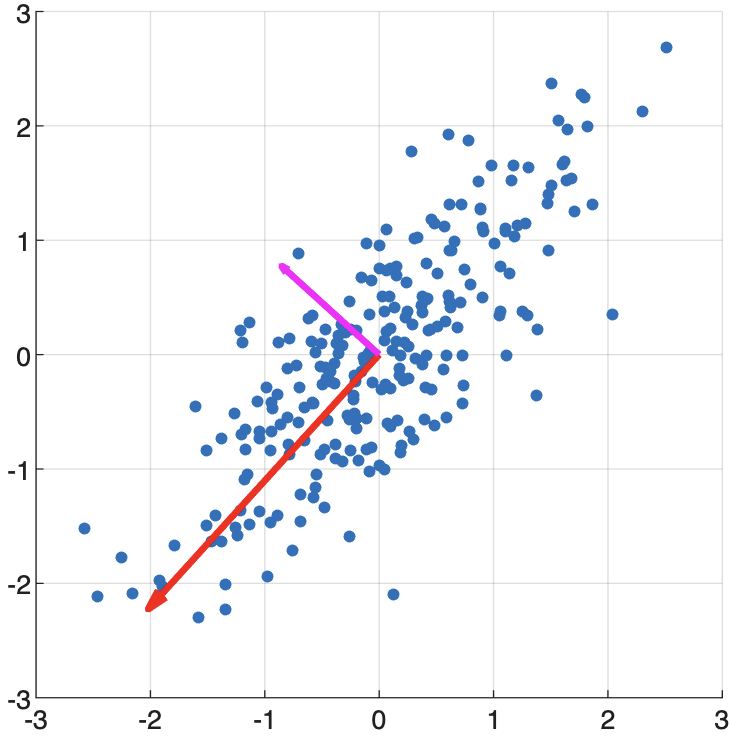

The columns of $V$ give the orthogonal directions of spread, from greatest to least.


Principal Vectors and Principal Components

Suppose \( \ds X=U\Sigma V^T = \sum_{i=1}^r \sigma_i\,\mathbf u_i\mathbf v_i^T. \)

Principal vectors

$\mathbf v_1,\mathbf v_2,\ldots$

Orthogonal directions
of decreasing spread

$\sigma_1\geq\sigma_2\geq\cdots$

Principal components

$\mathbf c_j=X\mathbf v_j$ $=\sigma_j\mathbf u_j$

Coefficients describing the data

Since the $\mathbf v_i$ are orthonormal, \(X\mathbf v_j = U\Sigma V^T\mathbf v_j = \sigma_j\mathbf u_j. \)

Thus the principal components are the columns of $XV=U\Sigma.$


Principal Component Analysis: The Procedure

1. Arrange the data:

$ X= \begin{pmatrix} \text{obs. 1}\\ \text{obs. 2}\\ \vdots\\ \text{obs. }m \end{pmatrix}\quad $

$\longrightarrow$

2. Compute the SVD:

$X=U\Sigma V^T \quad$

$\longrightarrow$

3. Find principal vectors:

$\mathbf v_1,\mathbf v_2,\v_3,\ldots \qquad $

4. Compute the principal components: $\, XV= \begin{pmatrix} |&|&&|\\ X\mathbf v_1& X\mathbf v_2& \cdots& X\mathbf v_r\\ |&|&&| \end{pmatrix} = U\Sigma $

5. Keep the most significant components: $ \;\sigma_1\geq\sigma_2\geq\cdots $

The first components capture the greatest variation in the data.

PCA finds a new orthogonal basis that reveals dominant patterns in the data!

Why is PCA Useful?

PCA transforms data into a new coordinate system that highlights the most important patterns and variations.

Distinguishing Data Sets

Project data onto the principal directions to reveal differences between groups or classes.

high-dimensional data
$\qquad \longrightarrow\;$ informative features

Dimensionality Reduction

Keep only the principal components that capture most of the variation in the data.

many variables
$\qquad \longrightarrow\;$ fewer variables

Data Compression

Approximate the data using only the most significant SVD components.

$X \approx \sum_{i=1}^{k} \sigma_i\mathbf u_i\mathbf v_i^T\quad$

Data Visualisation

Reduce complex data to two or three principal components for visual exploration.

high-dimensional data
$\quad\;\longrightarrow\;$ 2D or 3D visualisation

💡 PCA helps us see what matters most in our data! 📈 😃

Using PCA for Iris Dataset Classification

A well-established example illustrating the usefulness of PCA uses the Iris dataset, originally collected by Edgar Anderson in 1935, containing measurements of the lengths and widths of iris sepals and petals. The dataset contains measurements for 50 flowers from each of three different species: setosa, versicolor, and virginica.

Question: Can we use these measurements as a way of identifying which species an iris belongs to? 🤔



Using PCA for Classification of the Iris Dataset

Iris Dataset (csv)

5.1,3.5,1.4,0.2,Iris-setosa
4.9,3.0,1.4,0.2,Iris-setosa
4.7,3.2,1.3,0.2,Iris-setosa
            ⋮
7.0,3.2,4.7,1.4,Iris-versicolor
6.4,3.2,4.5,1.5,Iris-versicolor
6.9,3.1,4.9,1.5,Iris-versicolor
            ⋮
6.3,3.3,6.0,2.5,Iris-virginica
5.8,2.7,5.1,1.9,Iris-virginica
7.1,3.0,5.9,2.1,Iris-virginica
            ⋮

This is one of the earliest datasets used in the literature on classification methods and widely used in statistics and machine learning.

Source:
archive.ics.uci.edu/dataset/53/iris

A well-established example illustrating the usefulness of PCA uses the Iris dataset, originally collected by Edgar Anderson in 1935, containing measurements of the lengths and widths of iris sepals and petals. The dataset contains measurements for 50 flowers from each of three different species: setosa, versicolor, and virginica.


Using PCA for Iris Dataset Classification


Using PCA for Iris Dataset Classification

MATLAB

Run code locally! 💻 😃

iris_data_plot/
├── iris_data_plot.m
└── iris.data.csv

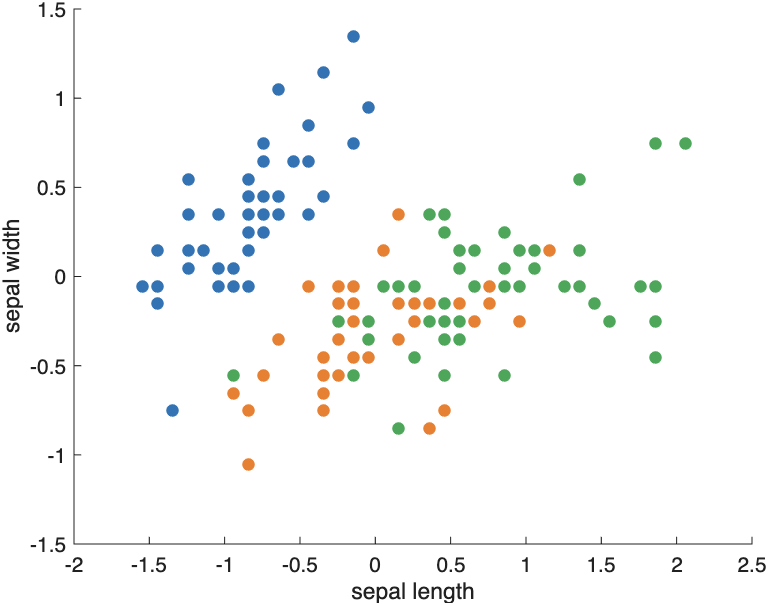

Plot of sepal length (horizontal) vs sepal width (vertical):

% Read the mixed data into a table
T = readtable("iris.data.csv");

% Extract ONLY the first 4 columns (the numbers)
iris_num = table2array(T(:, 1:4));

% Convert column 5 to color codes
[~, ~, color_idx] = unique(T{:, 5});

% Center the numerical data
iris_c = iris_num - mean(iris_num);

% Plot
scatter(iris_c(:,1), iris_c(:,2), [], color_idx, 'filled')
xlabel('sepal length')
ylabel('sepal width')

Warning: It requires a more advanced knowledge of MATLAB❗️❗️❗️🧐


Using PCA for Iris Dataset Classification

MATLAB

Run code locally! 💻 😃

iris_class_svd/
├── iris_class_svd.m
└── iris.data.csv

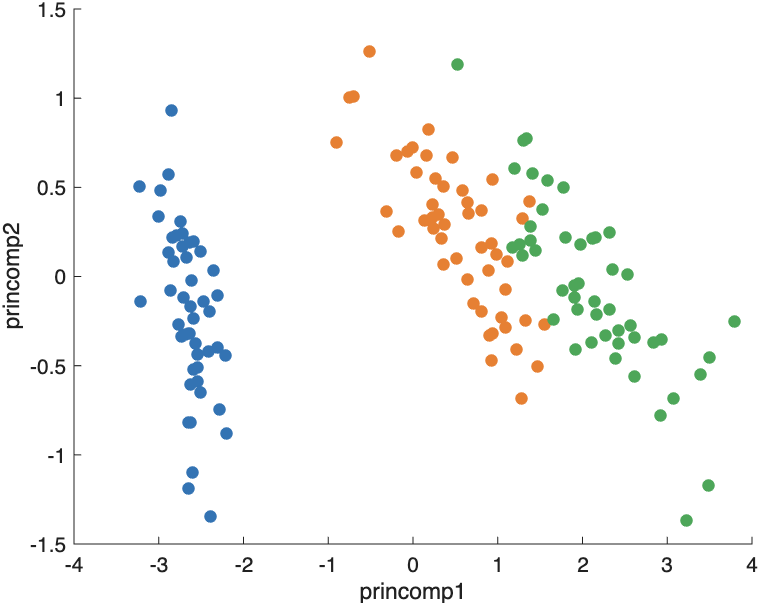

Plot of the first and second principal components:

% Read the mixed data into a table
T = readtable("iris.data.csv");

% Separate the numbers (cols 1-4) from the species text (col 5)
iris_num = table2array(T(:, 1:4));
[~, ~, color_idx] = unique(T{:, 5});

% Center the numerical data
iris_c = iris_num - mean(iris_num);

% Compute Singular Value Decomposition (SVD)
[u, s, v] = svds(iris_c, 2);

% Project numeric data onto the top 2 principal components
us = iris_c * v;

% Plot using the species color indices
scatter(us(:,1), us(:,2), [], color_idx, 'filled')
xlabel('princomp1')
ylabel('princomp2')

Warning: It requires a more advanced knowledge of MATLAB❗️❗️❗️🧐


From PCA Theory to Computation

Theoretically: we can compute PCA using the linear algebra we have learned.

However, carrying out the calculations by hand becomes very time-consuming for large datasets.

💻 This is where the computer helps us:
it performs the numerical calculations
quickly and accurately.

Technology changes quickly!

But the mathematical ideas behind PCA last much longer!

😃
